Hilton Garden Inn

View Our Work

Delray Engineering Inc. offers a broad range of design services including new buildings and renovations, bridges, marine and miscellaneous structures (i.e. retaining walls/signs), and failure investigations. The company, with its team of professionals, offers a complete design package that includes site, architectural, structural, electrical and mechanical services to bring a project from its conceptual stage through to completion.

Here are samples of our recent work:

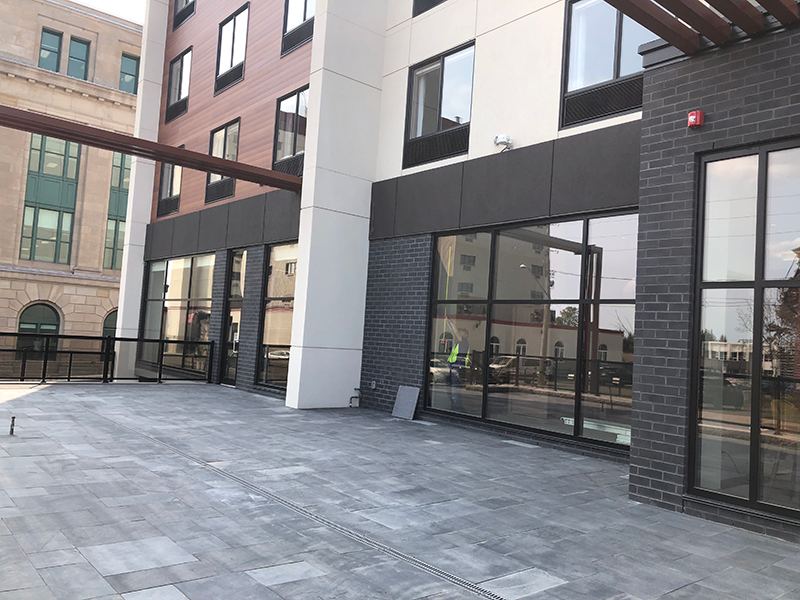

Hilton Garden Inn, Moncton NB

The Hilton is a 4-storey 117 room Hotel located in the down town core with underground / podium parking.

The hotel is comprised of main and second level reinforced concrete 2-way slabs supported by concrete columns and 3 upper levels of wood framed construction.

Design Challenges:

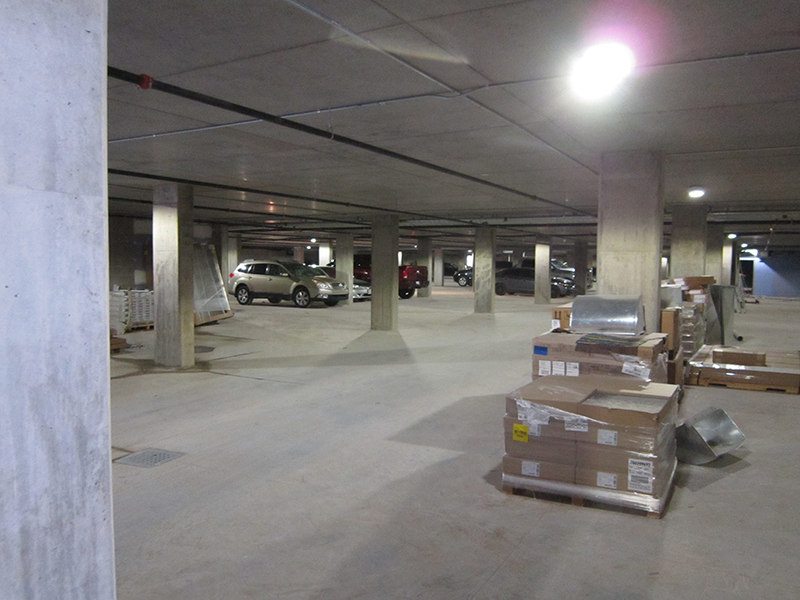

  • Podium underground parking extends 110 ft beyond the footprint of the building, with exterior parking on top.
  • 15 ft clear height between the main and second floor slabs.
  • Reinforced concrete swimming pool at main floor level.
  • Designed concrete slabs with steel shear reinforcement to eliminate concrete drop panels in order to fast track winter construction.
